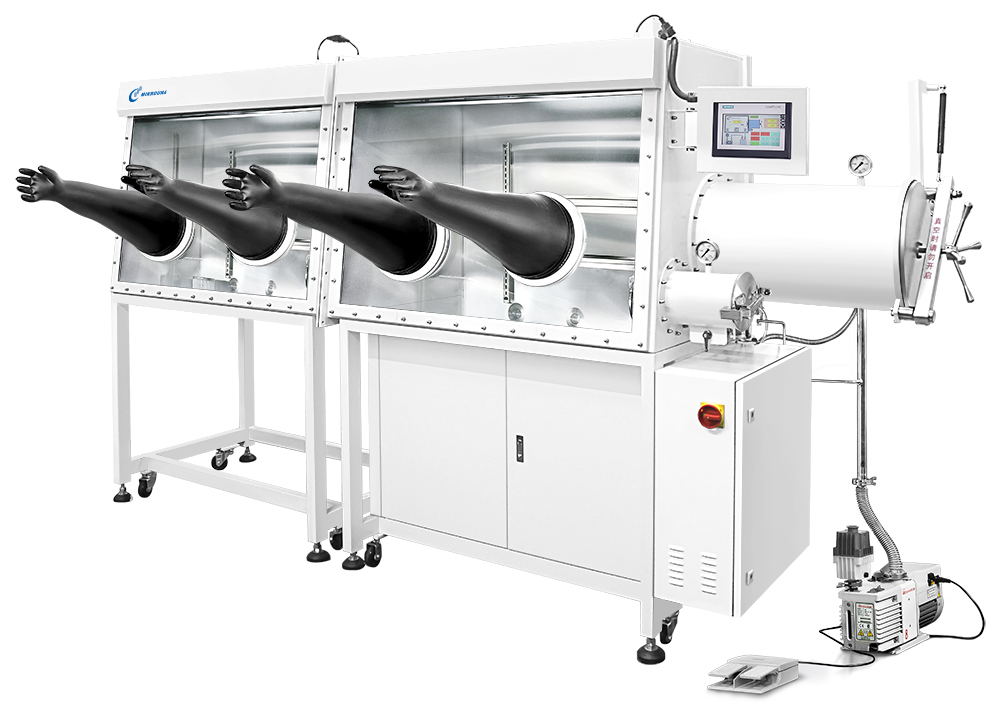

Universal glove box
R & D type, small-scale production, scalable, customizable
National Service Hotline400-990-6600
 |
 |
 |
|
Features |
||
| ● Optional IoT intelligent system to realize the mobile control and centralized management of the glove box, safe and secure. It has real-time synchronization of equipment status, equipment data report records, historical data can be inquired, alarm messages are actively notified, equipment remote debugging, fault online diagnosis and online repair, online customer service and other intelligent functions. | ||
|
● Control system: Siemens PLC |
||
|
● Purifier: single column |
||
|
● Water content: <1ppm |
||
|
● Oxygen content: <1ppm |
||
|
Product specifications |
||
|
Glove box |
||
|
Box |
Material: 304 stainless steel, thickness 3mm |
|
|
Outer surface: 304 stainless steel |
||
|
Inner surface: oil film drawing surface |
||
|
Size: optional length 1500, 1800, 2440, 3660, 4880mm Optional depth of 750, 1000, 1200mm
Height 900mm
|
||
|
Front window |
Tilting window: transparent toughened safety glass, thickness 8mm |
|
|
Glove mouth |
Material is POM or aluminum alloy: O-ring seal |
|
|
gloves |
Butyl rubber: thickness 0.4mm, diameter 7'' or 8'' |
|
|
filter |
Specification: 0.3μm, one gas inlet and one gas outlet |
|
|
Shelf |
Material: stainless steel, built-in 2 layers, height adjustable |
|
|
Cabinet lighting |
Location: LED light, installed in the lampshade |
|
|
interface |
Specification: DN40KF, several spare interfaces, 1 power interface (220V) |
|
|
|
||
|
Purification unit |
||
|
Purification column |
Function: gas sealing, water removal and oxygen removal |
|
|
Container material: 304 stainless steel |
||
|
Purification materials: copper catalyst 5kg, molecular sieve 5kg |
||
|
Purification capacity: 60L deoxygenation, 2kg dewatering |
||
|
Water and oxygen index: <1ppm |
||
|
Circulatory system |
Working gas: nitrogen, argon, helium |
|
|
Circulation capacity: integrated fan flow rate 90m³/h (larger fan flow rate 145m³/h, 180m³/h can be provided) |
||
|
regeneration |
Operation: PLC automatically controls the regeneration process |
|
|
Regeneration gas: mixed gas of working gas and hydrogen (hydrogen 5%-10%) |
||
|
Vacuum pump |
Specification: 8m³/h, 12m³/h |
|
|
Rotary vane pump: with oil mist filter, air vibration control |
||
|
valve |
Main valve: DN40KF, electric angle valve |
|
|
Control valve: solenoid integrated valve |
||
|
|
||
|
Transition warehouse |
||
|
Large transition warehouse |
Warehouse body |
Size: diameter 360mm, length 600mm (optional diameter 400mm) |
|
Material: 304 stainless steel |
||
|
Surface: the inner surface is oil film drawing surface, the outer surface is spray paint or mirror surface |
||
|
annex |
Tray: sliding tray |
|
|
Warehouse door: double doors, anodized aluminum material, vertical operation thickness of 10mm, with lifting structure |
||
|
Pressure gauge: analog display |
||
|
control |
Operation: automatic control |
|
|
Small transition warehouse |
Warehouse body |
Size: diameter 150mm, length 300mm (optional diameter 100mm) |
|
Material: 304 stainless steel |
||
|
Surface: the inner surface is oil film drawing surface, the outer surface is spray paint or mirror surface |
||
|
annex |
Warehouse door: double door |
|
|
Pressure gauge: analog display |
||
|
control |
Operation: manual operation |
|
|
|
||
|
Control System |
||
|
description |
Display: Siemens PLC touch screen |
|
|
Function: Including self-diagnosis, power-off and self-starting features, with pressure control and adaptive functions, automatic control, cycle control, password protection |
||
|
Pressure control: control the pressure of the box and transition chamber, the working pressure of the box can be set freely within +/- 10mbar, and the system will automatically protect if it exceeds +/- 12mbar |
||
|
Foot switch: the air pressure in the box can be adjusted by the foot switch |
||
|
Data Memo: Automatically record system data |
||
|
|
||
|
Accessories |
||
|
Vacuum pump |
Specifications: 8m³/h, 12m³/h, 16m³/h |
|
|
Oxygen analyzer |
Measuring range: 0～1000ppm |
|
|
Dew point analyzer |
Measuring range: 0～500ppm |
|
|
|
||
|
|
||
