Vacuum Components

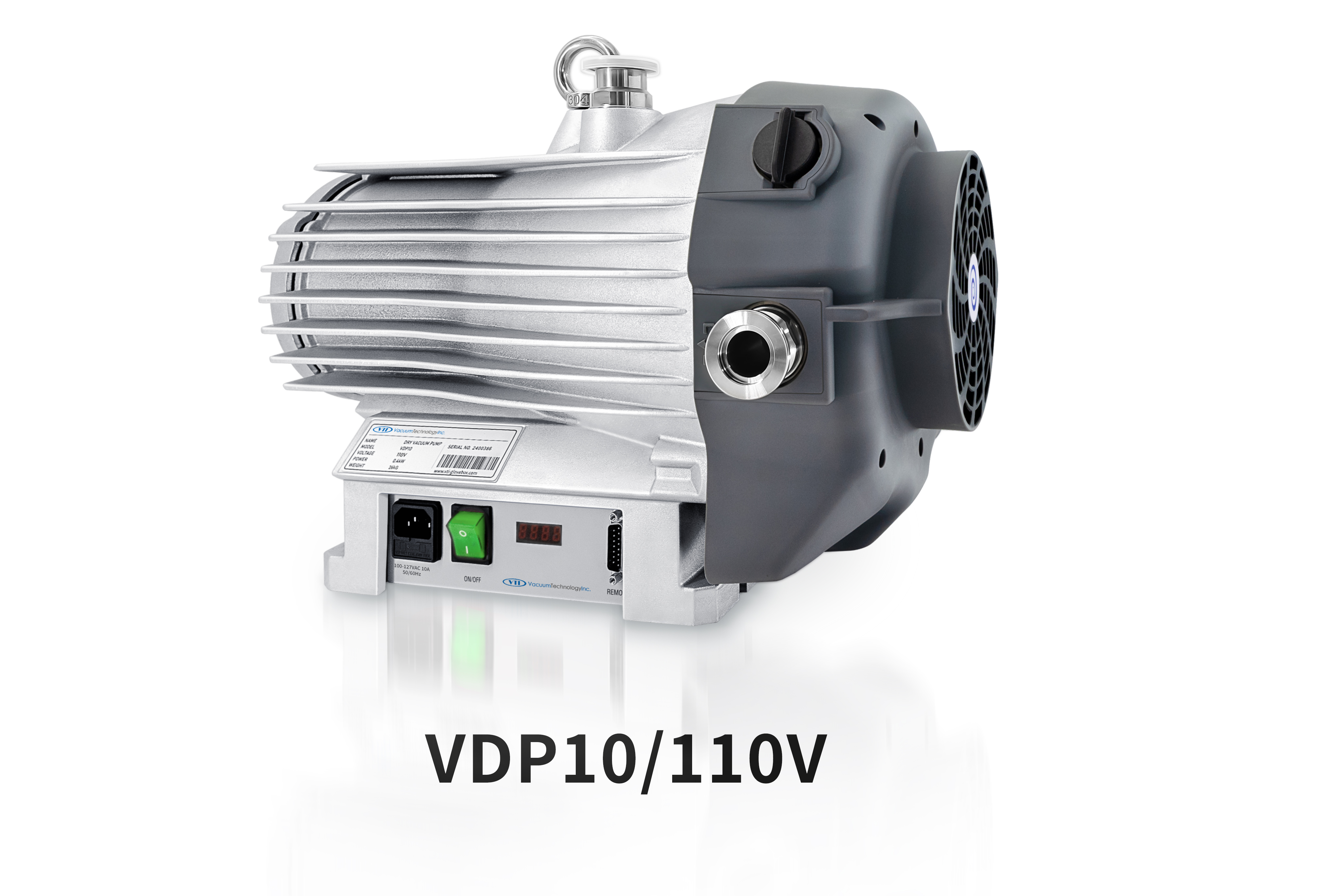

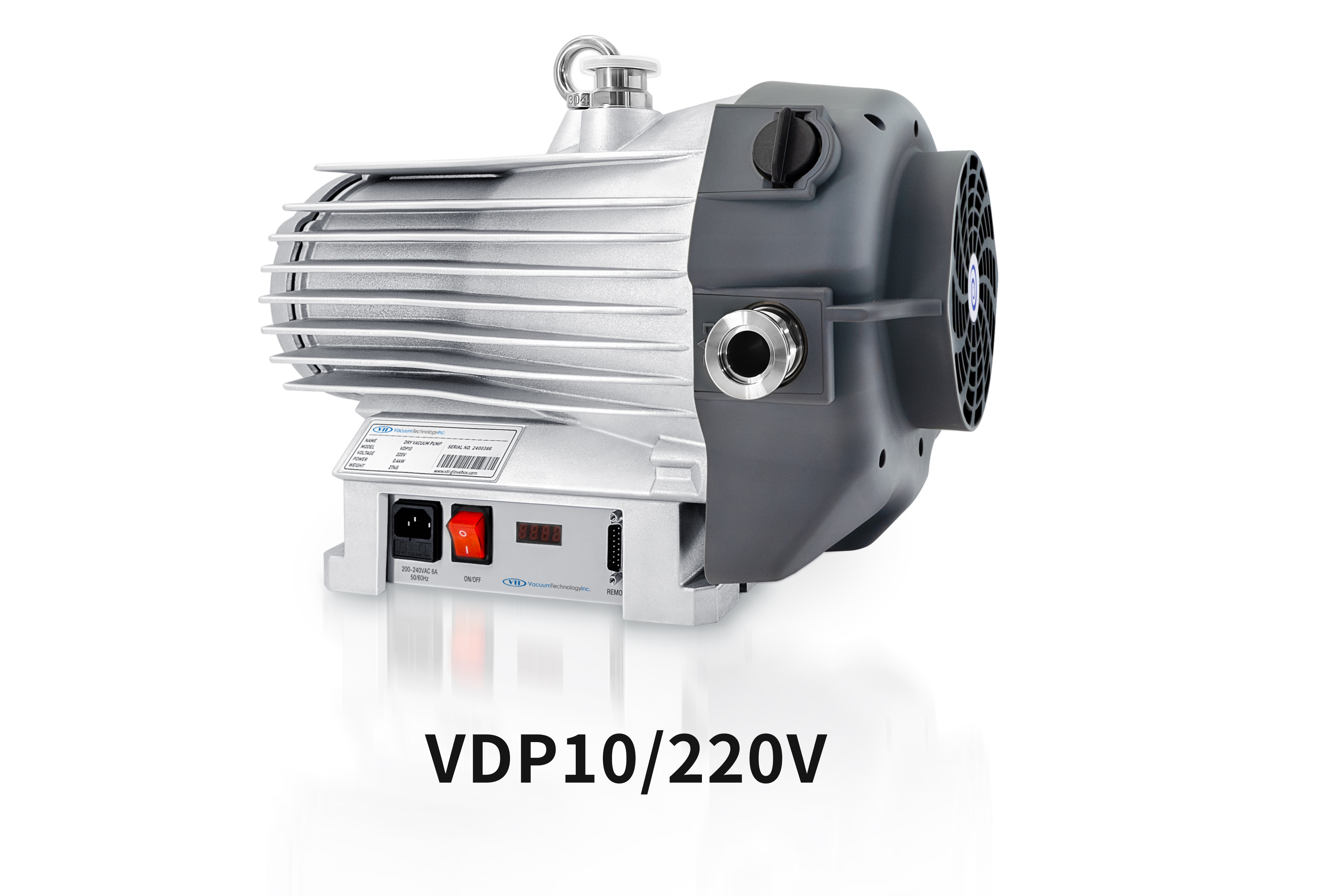

VDP10 Dry Vacuum Pump
100% dry oil-free vacuum pump, no oil backflow or oil injection problems, has a wider range of applications. CE certified with a 3-year warranty.
Product information
National Service Hotline400-990-6600
  |
| VDP10 Dry Vacuum Pump Features |
100% dry oil-free vacuum pump, no oil backflow or oil injection problems, with a wider range of applications.
| Dimensions |
| Technical Parameters |
| Electrical Data |
|
|
VDP10/110V | VDP10/220V | ||
|
Continuous Work Electrical Ratings
|
Power supply voltage |
100～127±10% | 220V±10% | VAC |
|
Phase number |
Single-phase | Single-phase | ||
|
Frequency |
50/60 | 50/60 | Hz | |
|
Input current |
10 | 6 | A | |
|
Recommended Fuse
|
Region |
United States, Japan | Europe, China | |
|
Voltage |
120V、100V | 230V、220V | V | |
| Rated value | 10A/250Va.c.rms | 10A/250Va.c.rms | ||
| Scope of Use |
VDP10 It is widely used in inert atmosphere glove boxes and related intelligent equipment, protective sealed chamber equipment and related intelligent equipment, lithium battery research and development and production, semiconductor production, 3D printing, physical and chemical research, nuclear technology, biopharmaceuticals, food production, coating machines, vacuum furnaces and other industries.
| Advantages |
